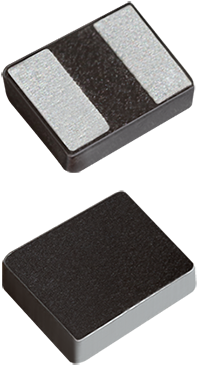

射頻電路用

產(chǎn)品分類：順絡(luò)
瀏覽次數(shù)：183
日期：2020-08-21
立即咨詢

詳細介紹

類別	電感	額定電流	尺寸代碼	系列	目錄	S參數(shù)
Multilayer/High Q	0.2 to 33nH	90 to 320mA	0402 [01005 inch]	SDCL0402H-01	SDCL0402H-01 PDF2020.07.07	SDCL0402H-012020.04.08
Multilayer/High Q	0.1 to 120nH	50 to 900mA	0603 [0201 inch]	SDCL0603Q-02B	SDCL0603Q-02B PDF2020.08.20
Multilayer/STD	0.6 to 360nH	50 to 800mA	1005 [0402 inch]	SDCL1005C	SDCL-D PDF2020.07.07	SDCL-D2020.04.08
Multilayer/STD	1.0 to 470nH	150 to 500mA	1608 [0603 inch]	SDCL1608C	SDCL-D PDF2020.07.07	SDCL-D2020.04.08
Multilayer/High Q	0.2 to 33nH	120 to 990mA	0402 [01005 inch]	HQ0402H	HQ-H PDF2020.07.07	HQ-H2020.04.08
	0.6 to 47nH	130 to 1000mA	0603 [0201 inch]	HQ0603H	HQ-H PDF2020.07.07	HQ-H2020.04.08
	0.2 to 56nH	100 to 1000mA	0402 [01005 inch]	HQ0402Q	HQ-Q PDF2020.07.07
	0.6 to 150nH	80 to 1100mA	0603 [0201 inch]	HQ0603Q	HQ-Q PDF2020.07.07
Multilayer/Supper Q	1.4 to 15nH	140 to 400mA	0402 [01005 inch]	UHQ0402H	UHQ PDF 2020.07.07
Multilayer/High Q	1.0 to 15nH	430 to 1000mA	1005 [0402 inch]	HQ1005	HQ PDF2020.07.07	HQ2020.04.08
Multilayer/High SRF	1.0 to 100nH	100 to 500mA	1005 [0402 inch]	SDHL1005	SDHL PDF2020.07.07	SDHL2020.04.08
Multilayer/High SRF	10 to 180nH	150 to 500mA	1608 [0603 inch]	SDHL1608	SDHL PDF2020.07.07	SDHL2020.04.08
Wire Wound/STD	0.8 to 120nH	110 to 1000mA	1.1×0.6×0.55	MWSD1005C	MWSD-C PDF2020.07.07	MWSD-C2020.04.08
Wire Wound	1.3 to 120nH	100 to 1200mA	1005 [0402 inch]	MWSD1005C-M	MWSD1005C-M PDF2020.08.21	MWSD1005C-M2020.04.08
Wire Wound	1.3 to 75nH	320 to 3150mA	1005 [0402 inch]	MWSD1005C-M8X	MWSD1005C-M8X PDF2020.08.21
Wire Wound/STD	1.6 to 560nH	70 to 1150mA	1608 [0603 inch]	SDWL1608C	SDWL-C PDF2020.07.07	SDWL-C2020.04.08
	2.2 to 1000nH	150 to 600mA	2012 [0805 inch]	SDWL2012C
	4.7 to 8200nH	150 to 1000mA	2520 [1008 inch]	SDWL2520C
	3.3 to 1200nH	300 to1000mA	3216 [1206 inch]	SDWL3216C
	3.9 to 8600nH	200 to 1000mA	3225 [1210 inch]	SDWL3225C
	1000 to 33000nH	145 to 480mA	4532 [1812 inch]	SDWL4532C
Wire Wound	2.2 to 470nH	75 to 1400mA	1608 [0603 inch]	SDWL1608C-M	SDWL-C-M PDF2020.07.07	SDWL-C-M2020.04.08
Wire Wound	1.6 to 390nH	100 to 700mA	1608 [0603 inch]	SDWL1608C-N01	SDWL-C-N PDF2020.07.07	SDWL-C-N2020.04.08
Lower DCR and Hight Q	1.0 to 51nH	360 to 2300mA	1005 [0402 inch]	SDWL1005-CP	SDWL-CP/CH PDF2020.08.21
	56 to 220nH	160 to 330mA	1005 [0402 inch]	SDWL1005-CH
	1.8 to 390nH	170 to 2100mA	1608 [0603 inch]	SDWL1608-CP
	2.6 to 820nH	180 to 2000mA	2012 [0805 inch]	SDWL2012-CP

一般信號線用

類別	電感	額定電流	尺寸代碼	系列	目錄
Multilayer/STD	0.047 to 3.3μH	10 to 25mA	1005 [0402 inch]	SDFL1005	SDFL PDF2020.07.07
	0.047 to 33μH	1 to 50mA	1608 [0603 inch]	SDFL1608
	0.047 to 47μH	4 to 300mA	2012 [0805 inch]	SDFL2012
	0.047 to 47μH	5 to 300mA	3216 [1206 inch]	SDFL3216
Wire Wound	0.0049 to 22μH	70 to 2600mA	1608 0603 inch	WL1608FS	WL-FS PDF2013.07.08
Wire Wound	33 to 200nH	110 to 340mA	0.53×0.4×0.4	MWSD0603F	MWSD-F PDF2018.09.26
	27 to 560nH	90 to 480mA	0.76×0.43×0.57	MWDS0703F
	22 to 2200nH	170 to 1600mA	1.1×0.6×0.55	MWSD1005F
	18 to 2200nH	170 to 2200mA	1.1×0.6×0.55	MWSD1005F-M01
	2.2 to 47μH	100 to 580mA	1608 [0603 inch]	MWSD-FE	MWSD-FE PDF2020.07.07
	2.2 to 22μH	340 to 1040mA	2012 [0805 inch]	MWSD-FE	MWSD-FE PDF2020.07.07
Wire Wound/STD	0.27 to 68μH	40 to 350mA	2012 [0805 inch]	SDWL2012FW	SDWL-FW PDF2020.07.07
	0.33 to 10μH	300 to 700mA	2520 [1008 inch]	SDWL2520FW
	1.5 to 18μH	130 to 320mA	3216 [1206 inch]	SDWL3216FW
	0.12 to12μH	140 to 450mA	3225 [1210 inch]	SDWL3225FW
Wire Wound	3.7μH	/	5.5×2.0×2.0 6.2×3.0×2.0 6.2×4.0×2.0	MTNF	MTNF PDF 2020.07.07

電源線用

類別	電感	額定電流	尺寸代碼	系列	目錄
Multilayer/STD, For Choke	0.1 to 10μH	50 to 700mA	1608 [0603 inch]	MCL1608	MCL PDF2020.07.07
Multilayer/STD, For Choke	0.1 to 10μH	60 to 1000mA	2012 [0805 inch]	MCL2012	MCL PDF2020.07.07
Multilayer For NFC	0.077 to 0.56μH	250 to 550mA	1005 [0402 inch]	MCL1005N	MCL-N PDF2020.07.07
Multilayer For NFC	0.077 to 0.82μH	400 to 1100mA	1608 [0603 inch]	MCL1608N	MCL-N PDF2020.07.07
Multilayer/STD	0.22 to 4.7μH	65 to 1200mA	1608 [0603 inch]	MPH1608	MPH PDF2020.07.07
	0.22 to 10 μH	110 to 1200mA	2012 [0805 inch]	MPH2012
	0.47 to 10μH	200 to 1500mA	2016 [0806 inch]	MPH2016
	0.47 to 10μH	250 to 2100mA	2520 [1008 inch]	MPH2520
Multilayer/STD	1.0 to 4.7μH	180 to 450mA	2012 [0805 inch]	MCL2012A	MCL-A PDF2020.07.07
	1.0 to 4.7μH	100 to 900mA	2016 [0806 inch]	MCL2016A
	1.5 to 4.7μH	250 to 600mA	2520 [1008 inch]	MCL2520A
Magnetic Shielded(Large Isat)	0.24 to 10μH	2.8 to 4.8A	2.0×1.2×1.0	WPN201210UF	WPN PDF 2020.07.07
	0.47 to 1.0μH	2.8 to 4.6A	2.0×1.6×0.8	WPN201608UF
	0.12 to 10μH	0.80 to 9.5A	2.0×1.6×1.0	WPN201610H/ WPN201610M/ WPN201610U/ WPN201610HS/ WPN201610UF
	0.24 to 2.2μH	1.70 to 5.85A	2.0×1.6×1.2	WPN201612H
	0.16 to 10μH	0.90 to 10A	2.5×2.0×1.0	WPN252010H/ WPN252010U/ WPN252010HS/ WPN252010UF
	0.24 to 10μH	1.10 to 8A	2.5×2.0×1.2	WPN252012H/ WPN252012E/ WPN252012HS
	10μH	1A	3.0×3.0×1.0	WPN3010HS
	1.5 to 10μH	1.35 to 3.40A	3.0×3.0×1.2	WPN3012H/ WPN3012HS
	10μH	1.4μH	4.0×4.0×1.0	WPN4010HS
	0.33 to 10μH	1.05 to 10.30A	4.0×4.0×1.2	WPN4012H/WPN4012HS
	0.22 to 10μH	2.8 to 18.7A	4.0×4.0×2.0	WPN4020H
Wire Wound/Shielded Type with Magnetic Glue, Low DCR	0.16 to 10μH	0.50 to 4.30A	2.0×1.6×1.0	SPH201610H	SPH PDF2020.07.07
	0.05 to 3.3μH	0.80 to 7.50A	2.0×1.6×1.0	SPH201610U
	0.16 to 33μH	0.35 to 5.20A	2.0×2.0×1.2	SPH202012H
	0.24 to 33μH	0.25 to 3.60A	2.5×2.0×1.0	SPH252010H
	0.16 to 82μH	0.21 to 6.50A	2.5×2.0×1.2	SPH252012H
	1.0 to 22μH	0.50 to 2.20A	3.0×3.0×1.2	SPH3012H
	0.1 to 100μH	0.23 to 4.6 A	3.0×3.0×1.5	SPH3015H
	0.33 to 100μH	0.25 to 2.80A	4.0×4.0×1.2	SPH4012H
	0.33 to 330μH	0.26 to 6.50A	4.0×4.0×1.8	SPH4018H
	0.33μH	7.50A	4.0×4.0×2.0	SPH4020H
	0.10 to 2.2μH	2.95 to 17.0A	4.0×4.0×3.0	SPH4030H
	1.0 to 47μH	1.10 to 7.80A	8.0×8.0×3.0	SPH8030H
Wire Wound/STD, Shielded Type with Magnetic Glue	0.22 to 22μH	0.4 to 2.7A	2.5×2.0×1.0	SWPA252010S	SWPA PDF2020.07.07
	0.22 to 33μH	0.38 to 2.2A	2.5×2.0×1.2	SWPA252012S
	0.47 to 56μH	0.21 to 1.44A	3.0×3.0×1.0	SWPA3010S
	0.22 to 100μH	0.21 to 5.30A	3.0×3.0×1.2	SWPA3012S
	0.22 to 220μH	0.16 to 3.25A	3.0×3.0×1.5	SWPA3015S
	1.0 to 22μH	0.45 to 2.0A	4.0×4.0×1.0	SWPA4010S
	0.47 to 100μH	0.25 to 3.3A	4.0×4.0×1.2	SWPA4012S
	0.22 to 220μH	0.27 to 5.5A	4.0×4.0×1.8	SWPA4018S
	0.22 to 220μH	0.30 to 5.0A	4.0×4.0×2.0	SWPA4020S
	1.0 to 330μH	0.40 to 3.30A	4.0×4.0×2.6	SWPA4026S
	0.47 to 680μH	0.19 to 5.20A	4.0×4.0×3.0	SWPA4030S
	0.22 to 100μH	0.33 to 3.0A	5.0×5.0×1.2	SWPA5012S
	0.22 to 560μH	0.20 to 5.30A	5.0×5.0×2.0	SWPA5020S
	0.22 to 680μH	0.3 to 18A	5.0×5.0×4.0	SWPA5040S
	1.5 to 33μH	1.13 to 5.20A	5.0×5.0×4.5	SWPA5045S
	0.5 to 330μH	0.27 to 4.50A	6.0×6.0×2.0	SWPA6020S
	0.82 to 380μH	0.23to 6.50A	6.0×6.0×2.8	SWPA6028S
	1.0 to 470μH	0.42 to 7.85A	6.0×6.0×4.0	SWPA6040S
	0.47 to 820μH	0.36 to 15.0A	6.0×6.0×4.5	SWPA6045S
	0.82 to 820μH	0.53 to 13.8A	8.0×8.0×4.0	SWPA8040S
	680μH	0.72A	8.0×8.0×6.0	SWPA8060S
	0.68 to 680μH	0.85 to 7.0A	8.0×8.0×6.5	SWPA8065S
Wire Wound, Shielded Type	50 to100nH	17 to 35A	4.1×4.0×4.0	WPZ040404	WPZ PDF 2020.07.07
	100 to 150nH	22 to 35A	5.2×5.0×6.6	WPZ050506
	55 to 150nH	27 to 70A	5.2×5.2×6.5	WPZ050507S001
	100 to 200nH	25 to 50A	6.4×6.4×5.3	WPZ060605S001
	72 to 226nH	8.5 to 27A	7.3×6.8×4.2	WPZ070704
	72 to 150nH	34 to 58A	7.0×7.0×5.0	WPZ070705S002
	32 to 200nH	18 to 115A	7.3×7.5×5.5	WPZ080805
	100 to 300nH	32.5 to 94A	6.4×9.6×8.0	WPZ090608S002
	70 to 280nH	36 to 145A	9.6×6.4×10.0/9.6×6.6×10.0	WPZ090610S002
	220nH	46A	9.6×6.4×10.0	WPZ090610S003
	70 to 175nH	31 to 78A	7.5×9.5×4.0	WPZ090704
	100 to 300nH	26 to 80A	7.5×9.5×9.0	WPZ090709
	70 to 330nH	35 to 175A	10.0×6.0×12.0	WPZ100612S002
	100 to 300nH	21 to 63A	7.0×10.2×5.0/10.25×7.0×5.2	WPZ100705 /WPZ100705S002
	115 to 330nH	28 to 94A	8.0×10.3×7.0/10.4×8.0×7.5	WPZ100807 /WPZ100807S002
	150 to 200nH	50 to 70A	8.1×10.1×7.5	WPZ100808
	100 to 300nH	26 to 80A	10.0×10.0×3.35	WPZ101003S001
	100 to 500nH	26 to 120A	10.0×10.0×6.0	WPZ101006S001
	100 to 200nH	45 to 90A	10.6×6.3×8.1	WPZ110608S001
	70 to 510nH	18 to 150A	7.4×11.0×7.7	WPZ110707
	150 to 250nH	52 to 85A	8.0×12.0×8.1	WPZ120808
	110 to 440nH	16 to 65A	8.5×13.5×2.9	WPZ130803
	110 to 440nH	35 to 140A	13.7×12.8×8.1	WPZ131308
	180 nH	49A	7.0×15.65×5.6	WPZ151506
	160 nH	55A	15.3×11.3×3.0	WPZ161203
	250 nH	30A	11.4×18×3.0	WPZ181103
Wire Wound (Mini Molded)	1.0μH	2.1A	2.0×1.2×0.65	MWTC2012065	MWTC PDF 2020.07.07
	0.47 to 1.0μH	2.3 to 3.1A	2.0×1.2×0.8	MWTC201208
	0.11 to 2.2μH	1.8 to 7.1A	2.0×1.2×1.0	MWTC201210
	0.47 to 1.0μH	2.8 to 3.5A	2.0×1.6×0.65	MWTC2016065
	0.24 to 1.0μH	3.0 to 4.9A	2.0×1.6×0.8	MWTC201608
	0.33 to 4.7μH	1.5 to 4.5A	2.0×1.6×1.0	MWTC201610
	0.47 to 4.7μH	1.6 to 4.8A	2.5×2.0×1.0	MWTC252010
Wire Wound/STD, Magnetic Shielded	1.0 to 330μH	0.50 to 7.0A	12.5×12.5×5.0	SWRB1204S	SWRB-S PDF2020.07.07
	1.0 to 680μH	0.48 to 8.0A	12.5×12.5×6.0	SWRB1205S
	1.0 to 1000μH	0.55 to 10.0A	12.5×12.5×8.0	SWRB1207S
Wire Wound/STD, Magnetic Shielded	3.3 to 330μH	0.19 to 1.94A	7.0×6.8×3.0	SWRH0602B	SWRH-B PDF2020.07.07
	10 to 470μH	0.20 to 1.35A	7.0×6.8×5.0	SWRH0604B
	2.2 to 560μH	0.22 to 3.0A	7.8×7.8×4.0	SWRH0703B
	10 to 560μH	0.23 to 1.84A	7.8×7.8×5.0	SWRH0704B
	2.2 to 470μH	0.36 to 4.0A	10.5×10.5×5.0	SWRH1004B
	1.0 to 470μH	0.25 to 7.0A	12.5×12.5×5.0	SWRH1204B
	1.0 to 1000μH	0.40 to 8.0A	12.5×12.5×6.0	SWRH1205B
	1.0 to 1000μH	0.55 to 10.0A	12.5×12.5×8.0	SWRH1207B
Wire Wound/STD, Magnetic Shielded	1.0 to 1000μH	0.23 to 6.50A	10.6×10.5×3.0	SWRH1003C	SWRH-C PDF2020.07.07
	1.5 to 330μH	0.52 to 6.50A	10.6×10.5×4.0	SWRH1004C
	3.3 to 820μH	0.48 to 6.0A	10.6×10.5×5.2	SWRH1005C
Wire Wound/STD, Magnetic Shielded	2.5 to 100μH	0.75 to 4.50A	10.1×8.3×3.0	SWRH8D28C	SWRH-DC PDF2020.07.07
	1.5 to 100μH	0.88 to 6.0A	10.1×8.3×4.0	SWRH8D38C
	2.0 to 100μH	0.80 to 5.50A	10.1×8.3×4.5	SWRH8D43C
Wire Wound/STD, Magnetic Shielded	1.2 to 10μH	0.35 to 0.90A	3.3×3.3×1.3	SWRH2D11R	SWRH-DR PDF2020.07.07
	1.5 to 12μH	0.62 to 1.80A	3.3×3.3×1.6	SWRH2D14R
	22.2 to 47μH	0.20 to 0.85A	3.3×3.3×2.1	SWRH2D18R
	22.7 to 39μH	0.14 to 0.50A	4.2×4.2×1.3	SWRH3D11R
	1.5 to 22μH	0.52 to 1.85A	4.2×4.2×1.6	SWRH3D14R
	1.5 to 33μH	0.32 to 1.55A	4.2×4.2×1.8	SWRH3D16R
Wire Wound/STD, Magnetic Shielded	1.5 to 33μH	0.32 to 1.35A	4.2×4.2×1.8	SWRH3D16S	SWRH-DS PDF2020.07.07
	3.3 to 47μH	0.35 to 1.45A	4.2×4.2×2.1	SWRH3D18S
	3.3 to 47μH	0.48 to 2.0A	4.2×4.2×3.2	SWRH3D28S
	1.0 to 150μH	0.15 to 1.72A	5.0×5.0×2.0	SWRH4D18S
	11.0 to 150μH	0.24 to 2.60A	5.0×5.0×3.0	SWRH4D28S
	3.3 to 150μH	0.31 to 2.0A	6.0×6.0×2.0	SWRH5D18S
	2.2 to330μH	0.25 to 2.60A	6.0×6.0×3.0	SWRH5D28S
	3.3 to 1000μH	0.14 to 2.80A	7.0×7.0×3.0	SWRH6D28S
	1.5 to 1000μH	0.20 to 5.20A	7.0×7.0×4.0	SWRH6D38S
